AMS JUICE DEGAS for fruit juice degassing

High Gravity Blender

HIGH GRAVITY BREWING - HGB

High Gravity Brewing enables a brewery to exploit its resources to the maximum. Additionally, a precise adjustment of the naturally fluctuating wort can be achieved.

Beer treatment occurs extremely gently with our modules. There are neither sintered candles nor dead areas hard to clean, nor are beverages exposed to shear forces. Our systems are robustly designed including the measurement devices, which is especially in faraway regions a benefit. The High Gravity Brewing modules are based on a CIP cleaning concept guaranteeing a high degree of safety regarding mixing, even the CO2 pipe can be CO2 cleaned.

AMS SMART HGB - High Gravity Brewing

Semi-automatic High Gravity Brewing module with reliable and consisten outputh

AMS SMART HGB is an extremely robust and easy to operate system at restricted budget. Rough ambient conditions such as water hammers in the pipework or power failures will hardly cause any damage. The system is precise to eliminate variations of product batches, even the technology is kept simple. The system is implemented according to the expansion stages required. The degassed water could be produced within AMS SMART HGB by adding a small degassing column to the system

AMS SMART HGB is available in 2 standard series for each capacity.

AMS SMART HGB 32 max. 5 m³/h (50 hl/h)
AMS SMART HGB 50 max. 10 m³/h (100 hl/h)

+ QUOTE PLEASE

    How can AMS improve your products?

    AUTOMATION

    Software SolutionsProcess Control SystemsElectrical Systems

    MODULES

    Sugar DissolverSyrup KitchenBeverage MixerProduct DegasserCarbonisatorHigh Gravity BlenderFlash PasteurizerCleaning in PlaceYeast Propagation

    SERVICES

    Planning and EngineeringProject ImplementationOperations SupportMaintenance Services

    The more specific the details,
    the better we fit!

    Please tell us a bit more about you:

    captcha
    Please type in the verification-code above


    AMS AUTO HGB - High Gravity Brewing

    Fully automatic High Gravity Brewing module with low operating cost

    The system regulates the predefined values for the CO2 content, the original wort and the beer colour automatically. The unique design of the dosing technology is the system's unique feature. The components to be dosed are added precisely at the same dosing point for both homeopathic or high dosing rates. There is in principle no competing system which can achieve a higher level of accuracy while being kept clean so easily with CIP cleaning.

    AMS AUTO HGB is available in 6 standard series for each capacity.

    AMS AUTO HGB 32 max. 6 m³/h (60 hl/h)
    AMS AUTO HGB 50 max. 12 m³/h (120 hl/h)
    AMS AUTO HGB 65 max. 23 m³/h (230 hl/h)
    AMS AUTO HGB 80 max. 35 m³/h (350 hl/h)
    AMS AUTO HGB 100 max. 55 m³/h (550 hl/h)
    AMS AUTO HGB 125 max. 86 m³/h (860 hl/h)

    Precision attainable:
    CO2 dosing: +/- 0.05 g/litre deviation from target value CO2 content finished product
    water dosing: +/- 0.1° Plato
    colouring beer dosing: +/- 0.1% deviation from target value colouring beer dosing volume

    AMS CARBO are carbonator for carbonation carbonization of beer and and soft drinks

    Carbonator

    CARBONATION AND BLENDING OF BEVERAGES

    Carbonation of soft drinks, juices water, and beer occurs extremely gently with our modules. The AMS Carbo Blender combines carbonization and blending in one skid-mounted module for optimal high gravity beer production

    There are neither sintered candles nor dead areas hard to clean, nor are beverages exposed to shear forces. CO2 gas is dosed finely inline to the product flow. After this the product finds its way into a special static or dynamic mixer (depending on system type) where CO2 bubbles are separated into fine beads and slightly pressured into the liquid. Carbonation up to 10 g/litre CO2 is attainable depending on the beverage.

    + QUOTE PLEASE

      Please tell us a bit more about you:

      captcha
      Please type in the verification-code above

      AMS EASY CARBO

      Simple and reliable beverage carbonation at low investment cost.

      AMS EASY CARBO is a carbonation device for reliable inline carbonation of soft drinks, beer, water and other beverages. The system essentially consists of a variable area flow meter, a pressure regulator, a needle metering valve for the CO2 gas and a static mixer in the product. The operator sets the value to be dosed for the CO2 precisely subject to the volumetric flow rate of the product. The display on the variable area flow meter is very precise. Carbonation proceeds reliably throughout the production phase with the pre-set value. Operation is straightforward. The only important factors for the operator are knowledge of the product flow rate and shutting off the CO2 feed once production has been completed. AMS EASY CARBO can be incorporated into the CIP cleaning process. In that case, the gas side is disconnected from the product side to make it mix-proof. AMS EASY CARBO is available in 3 standard series for each capacity.

      AMS EASY CARBO 25 max. 3 m³/h (30 hl/h)
      AMS EASY CARBO 32 max. 6 m³/h (60 hl/h)
      AMS EASY CARBO 50 max. 12 m³/h (120 hl/h)

      AMS SMART CARBO

      Semi automatic carbonation with a high certainty of outcome.

      AMS SMART CARBO is an extremely robust and easy to operate carbonation system at restricted budget. Rough ambient conditions such as water hammers in the pipework or power failures will hardly cause any damage. The carbonation system is precise to eliminate variations of product batches, even the technology is kept simple. The dosing is displayed on the variable area flow meter and precisely set on the dosing valve. Initiators trigger an alarm if there is a deviation from the pre-set CO2 dosage quantity. The beverage line is equipped with a flow monitor to provide further security. Changes of flow rates are detected and error signals stop production if required. The pressure in the beverage line is kept exactly at the value intended via a mechanical regulating valve. AMS SMART CARBO is available in 2 standard series for each capacity.

      AMS SMART CARBO 32 max. 6 m³/h (60 hl/h)
      AMS SMART CARBO 50 max. 12 m³/h (120 hl/h)

      AMS AUTO CARBO

      Fully automatic beverage carbonation at low energy costs.

      AMS AUTO CARBO stands for the highest level of precision found in the beverage industry. The carbonation system can be easily connected to a central control or has a record of the operating parameters as a "stand alone" version. The required CO2 content for each beverage is recorded in the recipe editor. The system settles the specified values automatically. An automatic regulating valve is used to keep the beverage pressure at the value which is necessary for dissolving the intended CO2 quantity at the current product temperature. The resultant lower power consumption of the product pump reduces energy costs for the operation.
      Precision attainable: +/- 0.05 g/litre deviation from set point of the finished product AMS AUTO CARBO is available in 6 standard series for each capacity.

      AMS AUTO CARBO 32 max. 6 m³/h (60 hl/h)
      AMS AUTO CARBO 50 max. 12 m³/h (120 hl/h)
      AMS AUTO CARBO 65 max. 23 m³/h (230 hl/h)
      AMS AUTO CARBO 80 max. 35 m³/h (350 hl/h)
      AMS AUTO CARBO 100 max. 55 m³/h (550 hl/h)
      AMS AUTO CARBO 125 max. 86 m³/h (860 hl/h)
      AMS Syrup Kitchen or Syrup Room for the syrup production and syrup preparation of soft drink syrups

      Syrup Kitchen

      SYRUP KITCHEN - perfect soft drink factory

      The Syrup Kitchen is your hub for creating innovative drinks. Highest syrup quality, flexibility in recipe design and preparation of syrup variants. That’s the AMS guarantee. Tasty soft drinks, juice spritzers, juice beverages, alcohol-based cocktails or energy drinks. The choice is yours.

      For the production of mixed beverages a syrup can be prepared as a primary product. Syrup is made essentially of liquid sugar and flavour. A high quality syrup production should also ensure that the oxygen content of the liquid sugar is reduced. A carbonation of the syrup provides finer resolution of the CO2 in the finished beverage.

      Our syrup rooms consist of the following components:

      • Mixing tanks
      • Syrup routing module
      • Container station
      • Dissolver for solids / addition of micro ingredients
      • Suction lance

      The syrup production is carried out in a batch mode. If two syrup tanks are used, the syrup can be prepared continuously. The special feature of our syrup room is the unsurpassed perfectly mixed syrup, a lower oxygen content and the pre-carbonation of the syrup. Liquid sugar usually contains a lot of oxygen, depending on the dissolution process.

      By the addition of CO2 into the circulation line, the oxygen is expelled from the syrup. What remains is a desired pre-carbonation of the syrup. If non-carbonated drinks are produced, then instead of oxygen, nitrogen may be used or there may be no addition of gas.

      + QUOTE PLEASE

        Please tell us a bit more about you:

        captcha
        Please type in the verification-code above

        #1. Mixing tanks

        The mixing tanks are equipped with rotary mixers. With the mixers a perfectly homogeneous mixing result is ensured in a very short time. The addition of gas is also made via the rotary mixers. In the CIP cleaning the rotary mixers act as cleaning heads and provide a perfect cleaning of even the bottom of the upper tank.

        #2. Routing module

        The routing module is the function module to which all modules of the syrup room are connected. The control panel is also placed on the routing module. The syrup room is controlled from here.

        #3. Container station

        If the beverage ingredients are delivered in IBC containers or 500/1000 litre stainless steel containers, our container station simplifies the handling considerably. The operation takes place at normal working height. The container changing can be done simply without oxygen intake into the syrup. The pump, the measurement devices (mass flow), low level probe and the valves are housed in the container station. All pipes and hoses are completely integrated into the automatic CIP cleaning. The container station can be upgraded with additional spaces.

        #4. Dissolver

        For solids / addition of micro ingredients

        If ingredients are solid, then our dissolver is the optimal choice. Our dissolver is also suitable for adding small amounts of liquid components. The dissolver unit takes care of a homogeneous mixture prior toin front of dosing into the syrup tank.

        #5. Suction lance

        If raw materials are supplied in barrels, the barrel content must be removed from the top of the tank. The lance has an integrated water channel. With this the tube content can be applied to the product. The suction pipe is connected to the container station or to the solid solvent.

        AMS Sugar Dissolver for sugar dissolving and soft drink production

        Sugar Dissolver

        SUGAR DISSOLVING - for perfect soft drink production

        AMS BRIX sugar dissolving solutions are setting the next technology standard for soft drink production. AMS BRIX solutions are process optimized to prevent product spoilage germs and oxygen contained in sugar to effect dissolved sugar and hence soft drinks.

        Addition of granulated sugar
        from a silo
 and from big-bags

        recommended for capacities
        over 2000 liters/h

        AMS BATCH-BRIX

        A batch sugar dissolving system is used if the granulated sugar is received from bags/big bags instead of sugar silos, or in case the demand for liquid sugar is not continuous. The AMS BATCH-BRIX is available for various batch sizes.

        AMS BATCH-BRIX-MAX

        Cleanliness and high performance sugar dissolving

        This concept is designed for high or even continuous production rates. The feed hopper for granulated sugar is positioned away from the other devices. This allows a barrier-free feeding of granulated sugar. The picture shows all three components of the system: two sugar dissolving tanks, sugar feeding station and distribution module. A continuous sugar deployment is possible if two liquid sugar tanks are provided. The distribution module provides sugar filtration, tank changing, dosage of the liquid sugar to the consumers, circulation and temperature control as well as cleaning management.

        AMS BATCH-BRIX-COMPACT

        The sugar dissolving system for medium-sized companies

        The sugar dissolving system is based on a common stainless steel frame, only the dissolving vessel is placed separately. The sugar dissolving vessel and the sugar dissolving plant are connected to the customer's facility by a swivel bend panel. The system can be equipped with a heater as shown. AMS BATCH-BRIX-COMPACT may be ideal if installation space is limited.

        AMS BATCH BRIX FLEX

        Affordable and flexible sugar dissolving

        If the quantity of sugar dissolving is manageable and other substances may be added, then AMS BATCH BRIX FLEX is the right solution. The dissolving tank is located on the common base frame. The granulated sugar is dissolved straight into the tank by the operator. AMS BATCH BRIX FLEX allows production of liquid sugar with very high Brix values.

        + QUOTE PLEASE

          How can AMS improve your products?

          AUTOMATION

          Software SolutionsProcess Control SystemsElectrical Systems

          MODULES

          Sugar DissolverSyrup KitchenBeverage MixerProduct DegasserCarbonisatorHigh Gravity BlenderFlash PasteurizerCleaning in PlaceYeast Propagation

          SERVICES

          Planning and EngineeringProject ImplementationOperations SupportMaintenance Services

          The more specific the details,
          the better we fit!

          Please tell us a bit more about you:

          captcha
          Please type in the verification-code above


          SIX ACCESSORIES

          for sugar dissolving systems

          #1 - Additional module heat and water recovery for sugar dissolving systems

          Certain applications require the provision of cold sugar syrup. The heat from the hot solution must be fully removed in this case. Our module for heat recovery allows this recovered energy to be used in the hot solution of the sugar. In contrast to conventional recovery systems, no excessive hot water quantities are generated, which cannot be used otherwise.





          #2 - Brix-Control module

          If there is a high demands of exact sugar syrup concentration, then the Brix-Control module is recommended. The sugar is dissolved with a slightly higher concentration and then diluted by water to the target value. The fully automated system includes Brix measurement to achieve accuracies of up to +/- 1° Brix.







#3 - Syrup filtration and syrup decolouration (activated carbon filter)

          With granulated sugar foreign particles will always enter the sugar syrup. These particles can easily be filtered out of the liquefied sugar (syrup). We offer filter systems with different filtration grades for this purpose. If clear beverages are being produced, we recommend our activated carbon filter. As a result, discolorations in the granulated sugar will not appear in the dissolved sugar syrup.









#4 - Sugar storage tanks and ring circuit

          The sugar syrup is provided in insulated and heated storage tanks. A circulation line is used to guide the sugar to the points of use and back to the respective storage tank.
          The advantages of this system are considerable:

          •
sedimentation in the storage tanks or in the pumps is prevented
          • the ring circuit is always free from air
          • the ring circuit can be rinsed easily with hot water
          • no sugar losses while feeding the sugar to the dosing point
          • no sugar spreading, no damage to the floor coating





#5 - Syrup dosing system

          Our dosing system guarantees an unsurpassed precision in the dosing of the sugar syrup into your product. The homogeneous blending of the syrup is always ensured, even with cold products. Dosing is pulsation-free. Even the very smallest dosing rates are dosed accurately.





          #6 - Crystal sugar handling

          In continuous systems the granulated sugar is provided from a sugar silo. Then the dosing into the dissolving system is carried out via a rotary feeder or a dosing screw. With batch dissolving systems, the granulated sugar is provided via a screw conveyor or via our "PowderFeeder".

          AMS Yeast Propagator for beer yeast propagation

          Yeast Propagation

          YEAST PROPAGATION

          Perfect yeast management is one of the key starting points for improving beer quality. Yeast management must occur at a uniform level to ensure consistent beer quality.

          A yeast propagation system helps achieving two key objectives. First, the propagation of the yeast only, foreign yeast and bacteria are not reproduced to any significant extent. Second, creating a vital, healthy and fermentable yeast.
          The vitality of the yeast is reduced during normal brewery operation and during repeated yeast pitching. The yeast is subject to pressures, pressure changes, shear forces, unsuitable temperatures, temperature changes, and osmotic stresses (differences in concentration) due to water or beers with too high alcohol content for the yeast. Reduced yeast vitality will extend beer processing times and negatively impact on beer flavour.
          30% freshly propagated yeast is added for each pitch in the fermentation tank if a yeast propagation system is used. The industrial yeast in the brewery is thus always kept clean and it maintains its vitality. This ratio ensures that beer with a consistent taste is produced. Customers are after all perfectly able to detect differences in taste. The smoothness of a beer is a sign of high quality.

          + QUOTE PLEASE

            Please tell us a bit more about you:

            captcha
            Please type in the verification-code above

            AMS YEAP

            AMS YEAP - Single tank yeast propagation.

            The tank is operated with a minimum overpressure as pressure is a stress factor for the yeast organism. Pressure-free operation requires sufficient unfilled tank space. After tank and system are CIP cleaned, the tank is filled with sterile wort up to approximately 20% of the liquid volume (not the tank volume). The wort is cooled down to propagation temperature (14-20°C) and ventilated with sterile air. Ventilation occurs in a transfer line. Finally, the yeast is passed from a Carlsberg flask into the propagation tank or the transfer line via a sampling valve.

            AMS YEAP - Yeast propagation process.

            The control provides the necessary lead time for the yeast with the propagation programme. The process time is dependent on the yeast quantity supplied. The propagation programme consists of a temperature programme, a circulation programme and a ventilation programme. The propagation continues until the desired residual extract, required as the yeast will change undesirably without the appropriate nutrients (mutation). Then the tank is filled to 100% of the liquid volume (approximately 55% of the tank volume) and the yeast propagation procedure is repeated in the same way.

            AMS YEAP - Yeast pitching, recovery & CIP.

            Finally, approximately 80% of the fill volume is removed from the propagation tank and used for "pitching" of the fermentation tanks. The remaining 20% of the fill volume is filled back up to 100% of the fill volume (55% of tank volume) with tempered sterile wort to act as a starter culture. No addition of yeast from the Carlsberg flask is required in this case. This process can, however, not be repeated indefinitely as the tank and the system must undergo thorough CIP cleaning following several yeast cycles. The yeast propagation process starts all over again after each CIP cleaning cycle, which means that fresh, vital yeast is always obtained

            AMS CIP module for cleaning in place

            CIP – Cleaning in Place

            CLEANING IN PLACE - CIP

            Five CIP solutions for every process application

            Despite standardisation of AMS CIP cleaning solutions, each CIP module is tailored its final needs. Especially the complex requirements are our speciality. The more unusual your cleaning requirements, the greater our advantage.

            AMS DECENTRALISED CIP

            Modest appearance and great benefits. The decentralised CIP cleaning plant can be adjusted optimally to the requirements of the process plant to be cleaned. Prepared cleaning media can normally be used more often than with central CIP plants, as a spreading of contaminations to other process plants is not possible. In addition to the simple handling, the main advantage of decentralized CIP cleaning is the greater security for your product.

            AMS MOBILE CIP

            AMS MOBILE CIP is the smallest cleaning systems available, ensuring reliable cleaning wherever a large CIP system is not economic. AMS MOBILE CIP is adapted precisely to the client’s requirements and secured against misuse failure of operators.

            AMS SINGLE CIP

            The CIP cleaning media will be used only one time, resulting in unsurpassed cleaning due to absence of back contamination. Compared to conventional systems, the consumption of cleaning concentrate increases only marginally, as the cleaning media can be used with a lower concentration. The basic module of the AMS SINGLE CIP is standardised like AMS DECENTRALISED CIP, but without storage tank for caustic. AMS SINGLE CIP cleaning is also equipped with a small buffer tank to cover volume extensions caused by the temperature increment and to remove the air from the system.

            AMS ROUTING CIP

            AMS CIP ROUTING is placed in front of new or existing tanks, resulting in a very sophisticated CIP cleaning system. We may cooperate with any local tank manufacturer saving transportation cost and providing the lowest possible total price of ownership. The valves, pumps, strainers, metering instruments and control system are mounted on a common base frame.

            AMS CENTRAL CIP

            A central CIP system is used to clean different production areas of one CIP system. Most of these plants are equipped with several cleaning circuits. A central CIP system is the best choice when the production areas to be cleaned do not contaminate the CIP Medium too much or the danger of damage through contamination of other production areas is limited. A central CIP system is usually highly automated since the cleaning sequences must be defined to eliminate waiting times.

            + QUOTE PLEASE

              How can AMS improve your products?

              AUTOMATION

              Software SolutionsProcess Control SystemsElectrical Systems

              MODULES

              Sugar DissolverSyrup KitchenBeverage MixerProduct DegasserCarbonisatorHigh Gravity BlenderFlash PasteurizerCleaning in PlaceYeast Propagation

              SERVICES

              Planning and EngineeringProject ImplementationOperations SupportMaintenance Services

              The more specific the details,
              the better we fit!

              Please tell us a bit more about you:

              captcha
              Please type in the verification-code above


              AMS INLINE MIX is an inline soft drink beverage mixer for multiple components

              Beverage Mixer

              AMS BEVERAGE MIXER

              Soft Drinks are increasingly attractive, new flavours are satisfying consumer´s thirst.
              And AMS guarantees high precision to MIX any drink to perfection.

              Our 3 AMS MIX Modules serve different applications. The AMS BATCH MIX is suitable for smaller-scale systems. AMS INLINE MIX is a fully integrated and automated system, where soft drink mixing and filling takes place simultaneously. AMS MULTI MIX is especially designed for multi component soft drink mixing with short changeover rates.

              AMS BATCH MIX

              Batch mixing is ideal for smaller quantities and has the advantage that a very thorough traceability of each batch is possible. Also, a batch can be tested, and then released for filling. Deviations within the batch are practically eliminated with our system.
              Another feature is the simplicity of the system. The system can be easily operated, even by less skilled personnel. All the ingredients are added, weighed and the beverage batch is finished. Two compelling reasons that tip the balance in favour of our AMS BATCH MIX: the assurance of the product quality and the simplicity.
              The AMS BATCH MIX is a 2-in-1 module for production of mixed beverages and for water degassing. And this is not just any mixing plant, but a system with unsurpassed accuracy and very simple handling. There is no mixing procedure that leads to perfect results so rapidly, even with components that are difficult to mix. Design options:

              • as a pure water degassing plant (reasonably priced, buffer effect of stripping gas, low gas consumption)
              • for production of finished mixed beverages in small batches
              • for production of finished mixed beverages in big batches and 5 tanks per AMS BATCH MIX Skid (continuous production)
              • for production of fruit mixed beverages
              • for production of flavoured dairy drinks
              • for production of mixed beer drinks
              • for reproducible accurate production of beer brands (in BBT) with varying original extract

              AMS BATCH MIX skid can be installed with locally purchased or even existing tanks further increasing the return on invest

              AMS INLINE MIX

              In the beverage industry, mixing describes a final in-line blending system for production of a finished beverage. AMS designed a technology of mixer series to adapt various needs of our customers. To standardise individual areas, our mixers consist of modules, which are part of the system as required.We assemble your mixer from the elements you require. From small-scale systems, where the finished syrup is dispensed from a single IBC container only, up to the AMS MULTI MIX, a multicomponent mixer, everything is possible.

              1. Buffer and Homogenisation

              This module ensures that product quality remains consistent, even if frequent stops occur. This module can be omitted if a buffer tank is placed in line before the filling machine and if this buffer tank has a separate inlet and a separate outlet to achieve a final homogenisation.

              2. Carbonation + Syrup dosing

              Core of the system is the dosing module. Here all product components are mixed together with maximum possible accuracy. If there are deviations from the tolerance, the flow will be stopped immediately. The dosing module can be ordered as a single component mixer or with several dosing points.

              3. Water Degassing

              The necessary residual oxygen of 0.08 ppm (starting value 0.8 ppm in the raw water) for the soft drinks can be achieved with our combined spray and rectification column in one pass. If an even lower residual oxygen value is required, then the system will be equipped with a higher column.

              AMS INLINE MIX is available in 3 standard series for each capacity.

              AMS INLINE MIX 50 15m³/h (150 hl/h)
              AMS INLINE MIX 65 25m³/h (250 hl/h)
              AMS INLINE MIX 80 35m³/h (350 hl/h)

              AMS MULTI MIX

              The AMS MULTI MIX blending system is the optimal soft drink solution when the sugar syrup is not to be used as a carrier of the soft drink components. This may be the case when the variety of different end products makes the stocking with many types of syrup laborious, or when sugar syrup is not part of each beverage, and therefore not available as carrier of the ingredients. The AMS MULTI MIX allows maximum flexibility during soft drink production. From lightly flavoured drinks, sugar-free light drinks, fruit juice blends to beer mix, there are no restrictions. The product changeover is mainly automatic and takes just a few minutes.

              There is no competitive system available on the market, which allows a higher dosing and mixing accuracy than our AMS MULTI MIX, promised! All ingredients of the soft drinks are added inline free of pulsation and can therefore be accurately measured. The highest accuracy is ensured, whether the dosing rate is large or only carried out in homeopathic doses. AMS achieves this accuracy with robust dosing lines in relatively large pipe diameters. All dosing lines can therefore be cleaned with a high CIP flow rate.

              The system can be adapted modularly to the requirements, even at a later time. Everything is perfectly matched, including the dosing station, the dissolver for solids and the buffer station.

              + QUOTE PLEASE

                How can AMS improve your products?

                AUTOMATION

                Software SolutionsProcess Control SystemsElectrical Systems

                MODULES

                Sugar DissolverSyrup KitchenBeverage MixerProduct DegasserCarbonisatorHigh Gravity BlenderFlash PasteurizerCleaning in PlaceYeast Propagation

                SERVICES

                Planning and EngineeringProject ImplementationOperations SupportMaintenance Services

                The more specific the details,
                the better we fit!

                Please tell us a bit more about you:

                captcha
                Please type in the verification-code above

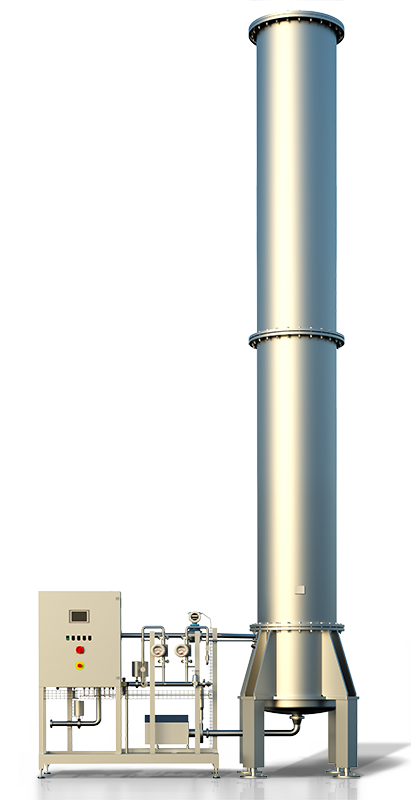

                AMS Water Degasser for water degassing

                Beverage Degasser

                WATER DEGASSING AND JUICE DEGASSING

                AMS water degassing and beverage degassing solutions focus on Gas Stripping with either hot or cold degassing solutions.

                Attainable residual oxygen in the degassed water may be less than 0.02mg (ppm) O2/litre or less than 20µg (ppb) O2/litre.
                The value for the residual oxygen is dependent on the oxygen content and the temperature of the raw water. The cooling of the water should therefore always take place after the water degassing. The column diameter and the column height are determined based on water temperature, oxygen content in the raw water, the desired throughput rate and the permitted residual oxygen.

                AMS COLD DEGAS

                The degassing process takes place completely at the temperature of the incoming water. This process always has the lowest energy consumption with the same output even though the column is the highest. The plant is extremely robust and there are hardly any wearing parts. The plant can be manufactured economically for many different sizes. Even for very small outputs.
                Downstream UV sterilisation must be integrated if there are problems with the hygiene of the raw water. If severe problems with water hygiene are anticipated, then preference should be given to pasteurisation.
                Gas requirement:  approx. 0.22 kg/hl water, amount lost:  approx. 5% (rest remains in the water)

                AMS COLD DEGAS 15 max. 1,2 m³/h (12 hl/h))
                AMS COLD DEGAS 25 max. 3 m³/h (30 hl/h)
                AMS COLD DEGAS 32 max. 6 m³/h (60 hl/h)
                AMS COLD DEGAS 50 max. 12 m³/h (120 hl/h)
                AMS COLD DEGAS 65 max. 23 m³/h (230 hl/h)
                AMS COLD DEGAS 80 max. 35 m³/h (350 hl/h)
                AMS COLD DEGAS 100 max. 55 m³/h (550 hl/h)
                AMS COLD DEGAS 125 max. 86 m³/h (860 hl/h)
                Additional equipment:
                - Downstream carbonation
                - Cooling
                - UV sterilisation

                AMS HOT DEGAS

                Hot degassing offers the benefit of additional pasteurisation and is the ideal choice if problems with water hygiene are anticipated. Little energy is required for operating the plant due to the high level of heat recovery. The water enters the plant cold and leaves it cold as well. The increase in temperature due to pasteurisation is only approx. 8°C even if no cooling zone is provided in the heat exchanger (available as an option). In principle, no CIP cleaning or sterilisation is required due to the hot operation and the internal sterilisation steps during start-up. Acid cleaning should only be carried out occasionally depending on the hardness of the water.
                Gas requirement: approx. 0.10 kg/hl water, approx. 5% of this is lost (via the roof, rest remains in the water)
                AMS HOT DEGAS is available in 8 standard series for each capacity.

                Size Throughput Steam
                AMS DEGAS 32 max. 6 m³/h (60 hl/h)) 76 kg/h
                AMS DEGAS 50 max. 12 m³/h (151 hl/h) 151 kg/h
                AMS DEGAS 65 max. 23 m³/h (288 hl/h) 288 kg/h
                AMS DEGAS 80 max. 35 m³/h (439 hl/h) 689 kg/h
                AMS DEGAS 100 max. 55 m³/h (550 hl/h)
                AMS DEGAS 125 max. 86 m³/h (860 hl/h) 1078 kg/h

                AMS JUICE DEGAS

                The AMS JUICE DEGAS is a high-end module for degassing of any fruit juice.
                The degassing takes place on a rotating plate within an evacuated tank, the rotation of the plate allows the product to be flung evenly against the tank wall forming a thin film. The vacuum separates the gases from the product film which are sucked out. A specific quantity of steam is removed depending on the set temperature. This steam and the contained flavours are condensed in a heat exchanger and then directly fed back into the product. The components which cannot be condensed are removed from the system with a vacuum pump.

                + QUOTE PLEASE

                  How can AMS improve your products?

                  AUTOMATION

                  Software SolutionsProcess Control SystemsElectrical Systems

                  MODULES

                  Sugar DissolverSyrup KitchenBeverage MixerProduct DegasserCarbonisatorHigh Gravity BlenderFlash PasteurizerCleaning in PlaceYeast Propagation

                  SERVICES

                  Planning and EngineeringProject ImplementationOperations SupportMaintenance Services

                  The more specific the details,
                  the better we fit!

                  Please tell us a bit more about you:

                  captcha
                  Please type in the verification-code above


                  AMS Flash Pasteurizer for pasteurizing beer, carbonated soft drinks, juices, milk and wine

                  Flash Pasteurizer

                  AMS FLASH

                  High-end pasteurisation plants for your products. Quality made in Germany, precise engineering and full automation at reasonable investments.

                  The two process parameters of pasteurization are temperature and holding time. The higher the temperature, the shorter the holding time and vice versa.
                  The general principle is to set the parameters in a way to meet shelf-life criteria while minimizing impact on taste quality.
                  Various established opinions are no longer state of the art. For example, a longer holding time has a more negative influence on the flavour than a slightly higher temperature. The demand for a higher heat recovery has a negative impact too, since it implicates a longer exchange zone. AMS FLASH principle is to achieve pasteurisation temperature as soon as possible, to shorten the holding time and to quickly cool down the product.

                  AMS FLASH is available
                  in 4 standard series for each capacity.

                  AMS FLASH 32 5 m³/h (60 hl/h)
                  AMS FLASH 50 11 m³/h (120 hl/h)
                  AMS FLASH 65 20 m³/h (230 hl/h)
                  AMS FLASH 80 35 m³/h (350 hl/h)
                  + QUOTE PLEASE

                    How can AMS improve your products?

                    AUTOMATION

                    Software SolutionsProcess Control SystemsElectrical Systems

                    MODULES

                    Sugar DissolverSyrup KitchenBeverage MixerProduct DegasserCarbonisatorHigh Gravity BlenderFlash PasteurizerCleaning in PlaceYeast Propagation

                    SERVICES

                    Planning and EngineeringProject ImplementationOperations SupportMaintenance Services

                    The more specific the details,
                    the better we fit!

                    Please tell us a bit more about you:

                    captcha
                    Please type in the verification-code above


                    Shell and tube heat exchanger systems for viscous and fibrous products

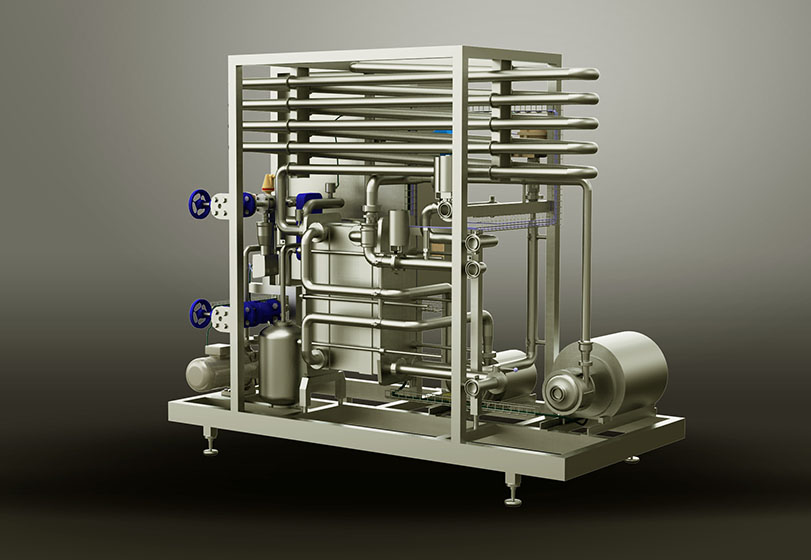

                    Pasteurisation of viscous and chunky products or products with high fibre content requires use of double pipe heat exchangers. AMS FLASH is a complete module with pumps, valves and control systems. The double pipe heat exchangers are installed as a block next to the AMS FLASH. With these systems, the time for heating up and cooling down has to be taken into consideration when calculating the pasteurisation units.
                    A lot of value, and AMS FLASH reduces your investment and operating cost, while being reliable, durable, and easy to operate. German engineering for world-wide operations.
                    AMS FLASH is a compact design optionally equipped with plate, shell or tube heat exchanger. It is fully automated with Siemens PLC and coloured touch control panel. Remote maintenance, operation from a central control and integration into various process control systems is possible and all operating conditions are recorded. Specified pasteurisation units are automatically kept within a very narrow tolerance range. Throughput rate is adapted to buffer tank fill level, and if fill level increases, for example due to a fault in the bottling plant, the output is reduced automatically.
